AMD/ATI Mobility Radeon HD 5450

Architecture : Terascale 2
Codename : Park Pro
Chip : -
Core : 80
Memory : 1GB GDDR3
Bus Width : 64 bit
Core Clock : 675MHz
Memory Clock : 800MHz
TDP : 11W
Technology : 40nm
Bus Interface : PCIe x16 2.0

See more specification...

Tuesday, 19 July 2022 19:48 | Update at 1 month ago

This page presents the specifications and synthetic benchmark results of the videocards AMD/ATI Mobility Radeon HD 5450. The data provides an overview of the hardwares performance based on standardized testing.

Terascale 2 Architecture

Park Pro Codename

64 bit Buswidth

675 MHz Clock

- Boost Clock

800 MHz Memory Clock

1GB GDDR3 VRAM

40 nm Technology

PCIe x16 2.0 Interface

Laptop Segment

Hardware Benchmark Record

This table displays the scores or sequential read & write speeds (for storage types) of various synthetic benchmark applications commonly used to test hardware performance. You can click on the score column to view the submissions page by ID. At that URL, you can browse the submitted results of each application, including viewing screenshots of the benchmark results. For screenshots of benchmark results, you can click the "View" button in the screenshot column.

In total, there are 19 submissions across 19 different benchmark applications, each testing the hardware from a unique angle. This variety allows you to draw a more comprehensive conclusion about the hardware's real-world performance.

Benchmark	Score	HWBOT/Benchmark URL	Facebook URL
3DMark - Cloud Gate	2301 marks	https://hwbot.org/submission/5068026	https://bit.ly/3TKdBvv
3DMark - Fire Strike	248 marks	https://hwbot.org/submission/5044502	https://bit.ly/3Rfb0re
3DMark - Fire Strike Extreme	76 marks	https://hwbot.org/submission/5068032	https://bit.ly/3TKdBvv
3DMark - Ice Storm	25624 marks	https://hwbot.org/submission/5068027	https://bit.ly/3QZxs7X
3DMark - Ice Storm Extreme	15735 marks	https://hwbot.org/submission/5068030	https://bit.ly/3QZxs7X
3DMark - Ice Storm Unlimited	23419 marks	https://hwbot.org/submission/5068029	https://bit.ly/3QZxs7X
3DMark Vantage - Extreme	504 marks	https://hwbot.org/submission/5068424	https://bit.ly/3TwDL4E
3DMark Vantage - Performance	1420 marks	https://hwbot.org/submission/5068420	https://bit.ly/3TwDL4E
3DMark03	8983 marks	https://hwbot.org/submission/5068203	https://bit.ly/3B52Qww
3DMark05	5585 marks	https://hwbot.org/submission/5044519	https://bit.ly/3CCekJa
3DMark06	3562 marks	https://hwbot.org/submission/5044516	https://bit.ly/3R6eQTO
3DMark11 - Entry	705 marks	https://hwbot.org/submission/5044508	https://bit.ly/3AsnvZV
3DMark11 - Extreme	137 marks	https://hwbot.org/submission/5044509	https://bit.ly/3AsnvZV
3DMark11 - Performance	452 marks	https://hwbot.org/submission/5044513	https://bit.ly/3AsnvZV
3DMark2000	3549 marks	https://hwbot.org/submission/5068205	https://bit.ly/3B52Qww
Aquamark	72508 marks	https://hwbot.org/submission/5068108	https://bit.ly/3qjwGHw
Catzilla - 576p	872 marks	https://hwbot.org/submission/5069312	https://bit.ly/3R1bzFE
Catzilla - 720p	649 marks	https://hwbot.org/submission/5069313	https://bit.ly/3R1bzFE
Geekbench4 - Compute	2974 points	https://hwbot.org/submission/5068113	https://bit.ly/3qjwGHw

Media Gallery

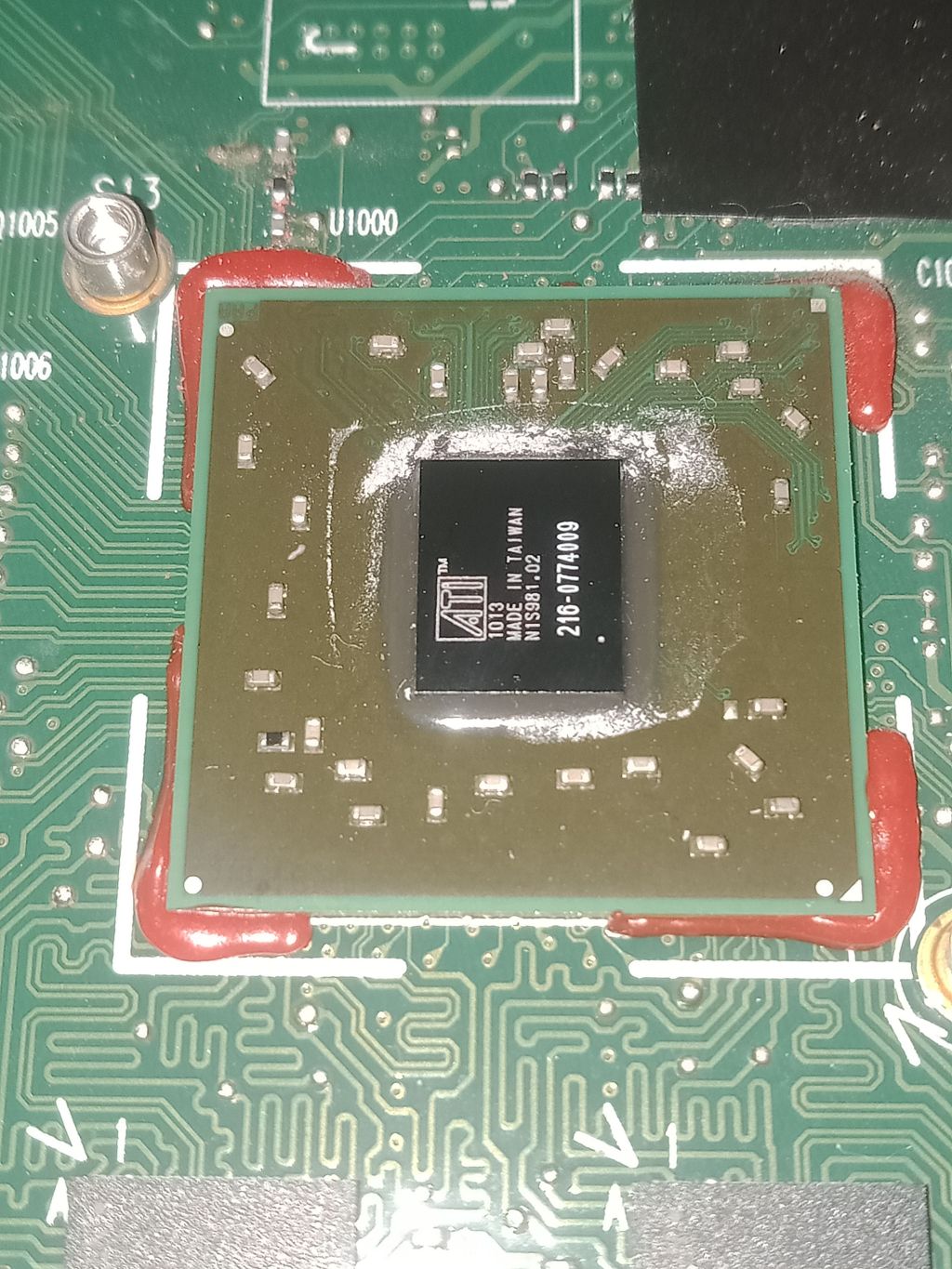

A collection of photos of tested hardware. These images can help you identify the physical form, model, and variant of the hardware in question. These photos are from our own documentation, and if they are not available we may not be able to document them.

Nearby Competitors

Shows two other devices with slightly higher scores and two others with slightly lower scores on the same benchmarks. Useful to see how competitive these devices are.

3DMark - Fire Strike

Rank	Hardware	Score	Performance Percentage
Higher	Intel HD Graphics 520 (Mobile)	666 marks	268.5%

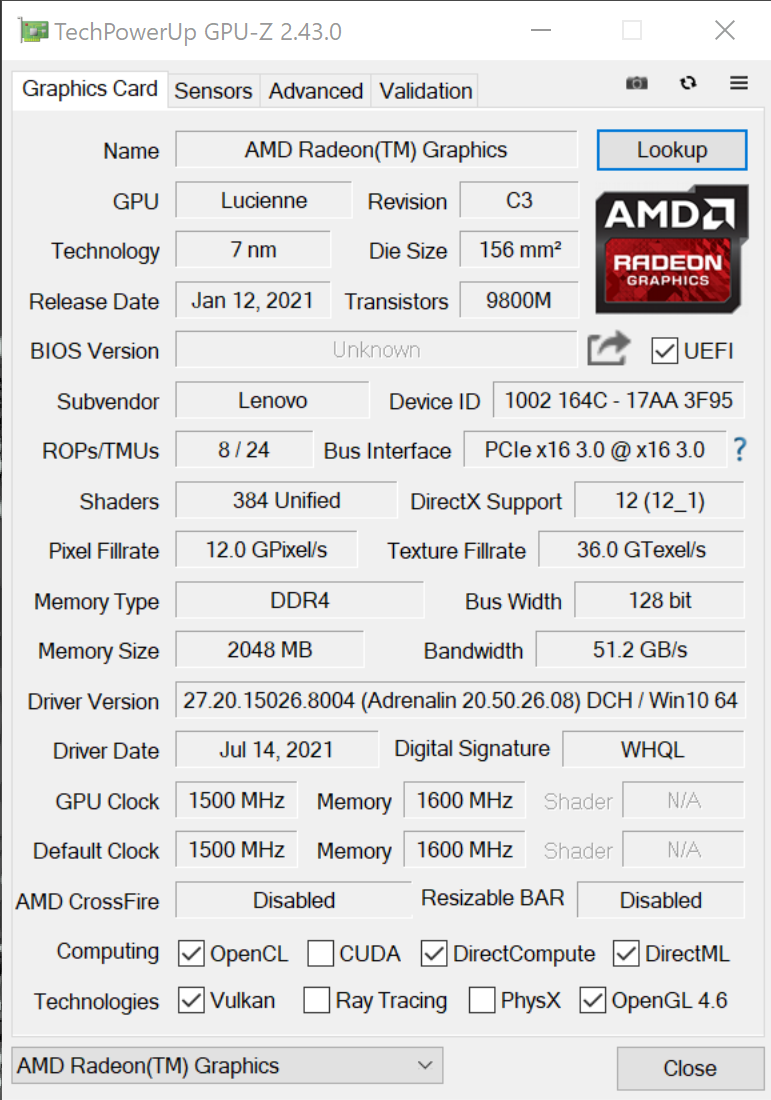

Higher	AMD Radeon Graphics Mobile (Lucienne, 384 Shaders)	2468 marks	995.2%
This Hardware	AMD/ATI Mobility Radeon HD 5450	248 marks	100%
Lower	AMD Radeon HD 7310	156 marks	62.9%

3DMark05

Rank	Hardware	Score	Performance Percentage

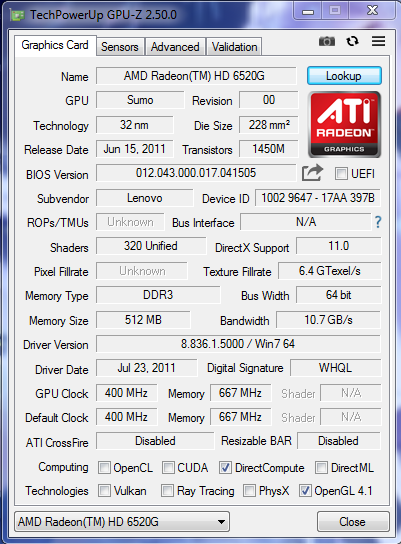

Higher	AMD Radeon HD 6520G	5959 marks	106.7%
Higher	Intel HD Graphics 3000 Mobile	6769 marks	121.2%
This Hardware	AMD/ATI Mobility Radeon HD 5450	5585 marks	100%
Lower	AMD Radeon HD 7310	3701 marks	66.3%

3DMark06

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 6520G	3658 marks	102.7%
Higher	Intel HD Graphics 3000 Mobile	3874 marks	108.8%
This Hardware	AMD/ATI Mobility Radeon HD 5450	3562 marks	100%
Lower	AMD Radeon HD 7310	2206 marks	61.9%

3DMark11 - Entry

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 6520G	905 marks	128.4%

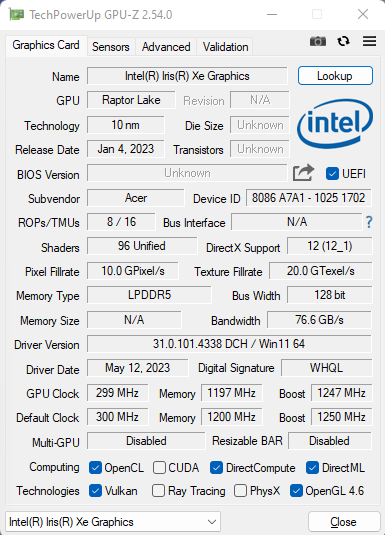

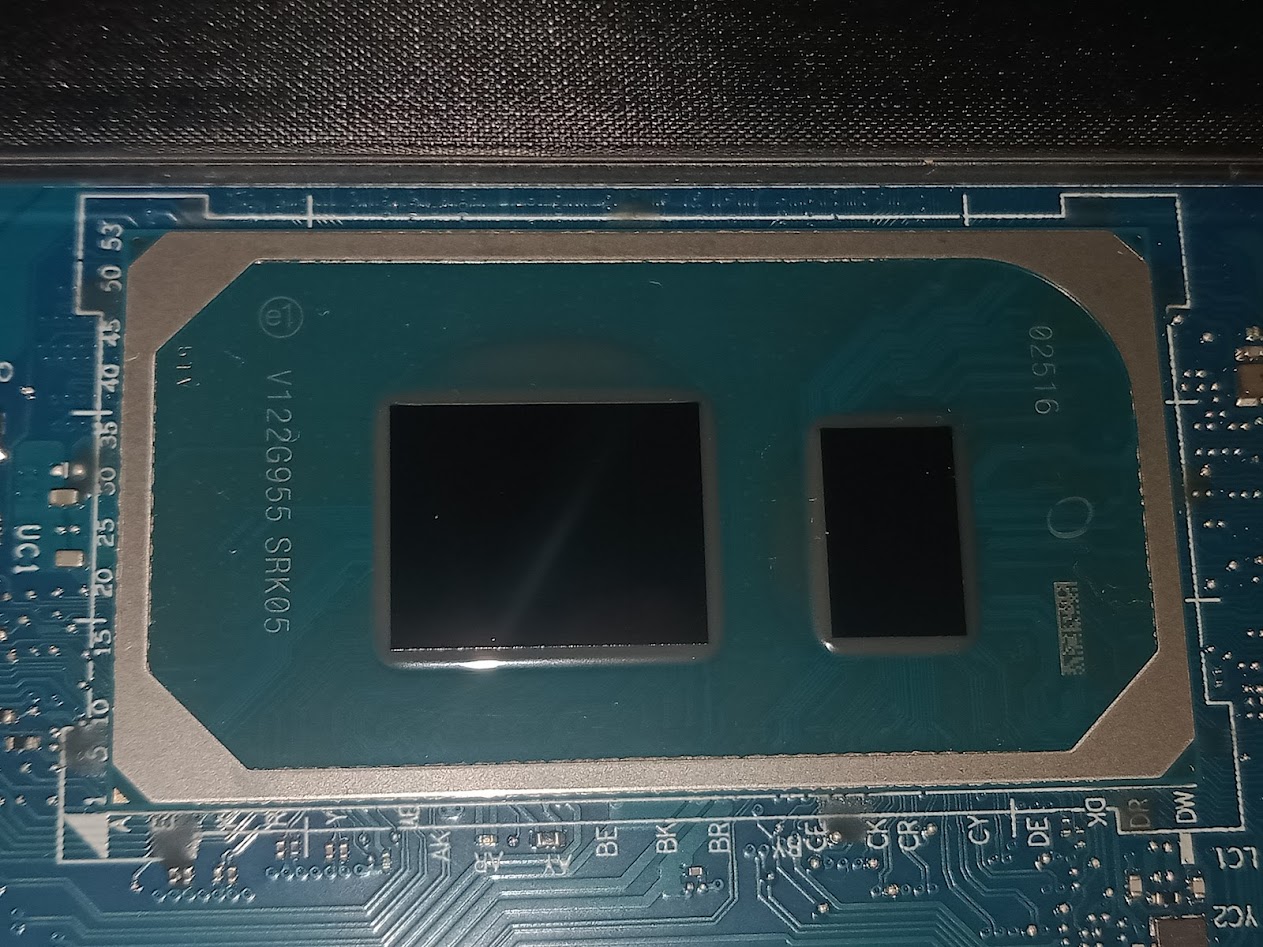

Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	8601 marks	1,220.0%
This Hardware	AMD/ATI Mobility Radeon HD 5450	705 marks	100%
Lower	AMD Radeon HD 7310	505 marks	71.6%

3DMark11 - Extreme

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 6520G	173 marks	126.3%
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	1029 marks	751.1%
This Hardware	AMD/ATI Mobility Radeon HD 5450	137 marks	100%
Lower	AMD Radeon HD 7310	101 marks	73.7%

3DMark11 - Performance

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 6520G	548 marks	121.2%
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	4975 marks	1,100.7%
This Hardware	AMD/ATI Mobility Radeon HD 5450	452 marks	100%
Lower	AMD Radeon HD 7310	351 marks	77.7%

Catzilla - 576p

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	4903 marks	562.3%

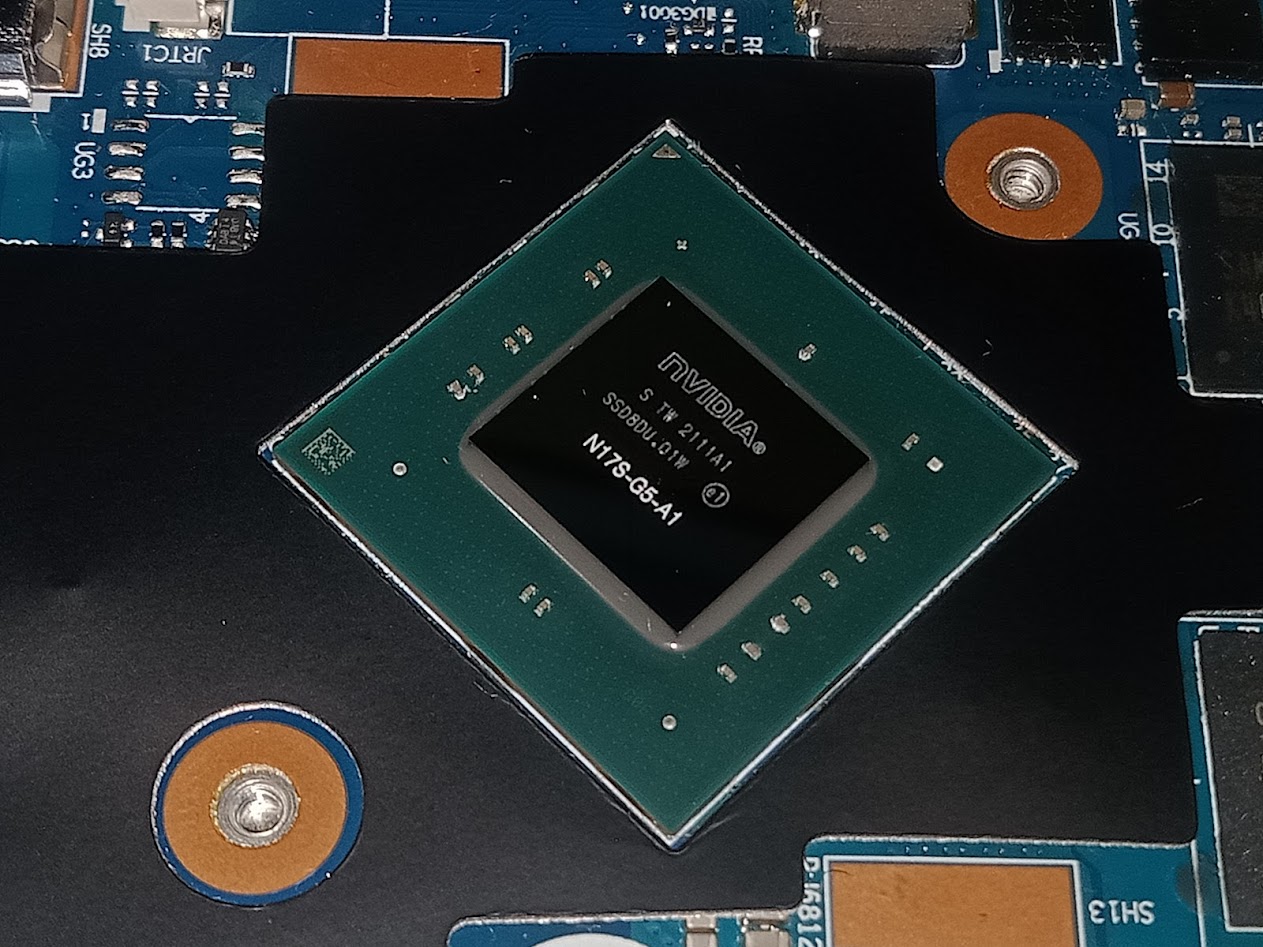

Higher	NVIDIA GeForce MX350	10965 marks	1,257.5%
This Hardware	AMD/ATI Mobility Radeon HD 5450	872 marks	100%
Lower	AMD Radeon HD 7310	371 marks	42.5%

Catzilla - 720p

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	4067 marks	626.7%
Higher	NVIDIA GeForce MX350	8429 marks	1,298.8%
This Hardware	AMD/ATI Mobility Radeon HD 5450	649 marks	100%
Lower	AMD Radeon HD 7310	318 marks	49.0%

3DMark - Ice Storm

Rank	Hardware	Score	Performance Percentage
Higher	Intel HD Graphics 3000 Mobile	29702 marks	115.9%
Higher	Intel HD Graphics 520 (Mobile)	36177 marks	141.2%
This Hardware	AMD/ATI Mobility Radeon HD 5450	25624 marks	100%
Lower	AMD Radeon HD 7310	14854 marks	58.0%
Lower	IMG PowerVR Rogue GE8320 680MHz	10470 marks	40.9%

3DMark - Ice Storm Extreme

Rank	Hardware	Score	Performance Percentage
Higher	Intel HD Graphics 3000 Mobile	17915 marks	113.9%
Higher	Intel HD Graphics 520 (Mobile)	27733 marks	176.3%
This Hardware	AMD/ATI Mobility Radeon HD 5450	15735 marks	100%
Lower	AMD Radeon HD 7310	9283 marks	59.0%
Lower	IMG PowerVR Rogue GE8320 650MHz	8210 marks	52.2%

3DMark - Ice Storm Unlimited

Rank	Hardware	Score	Performance Percentage

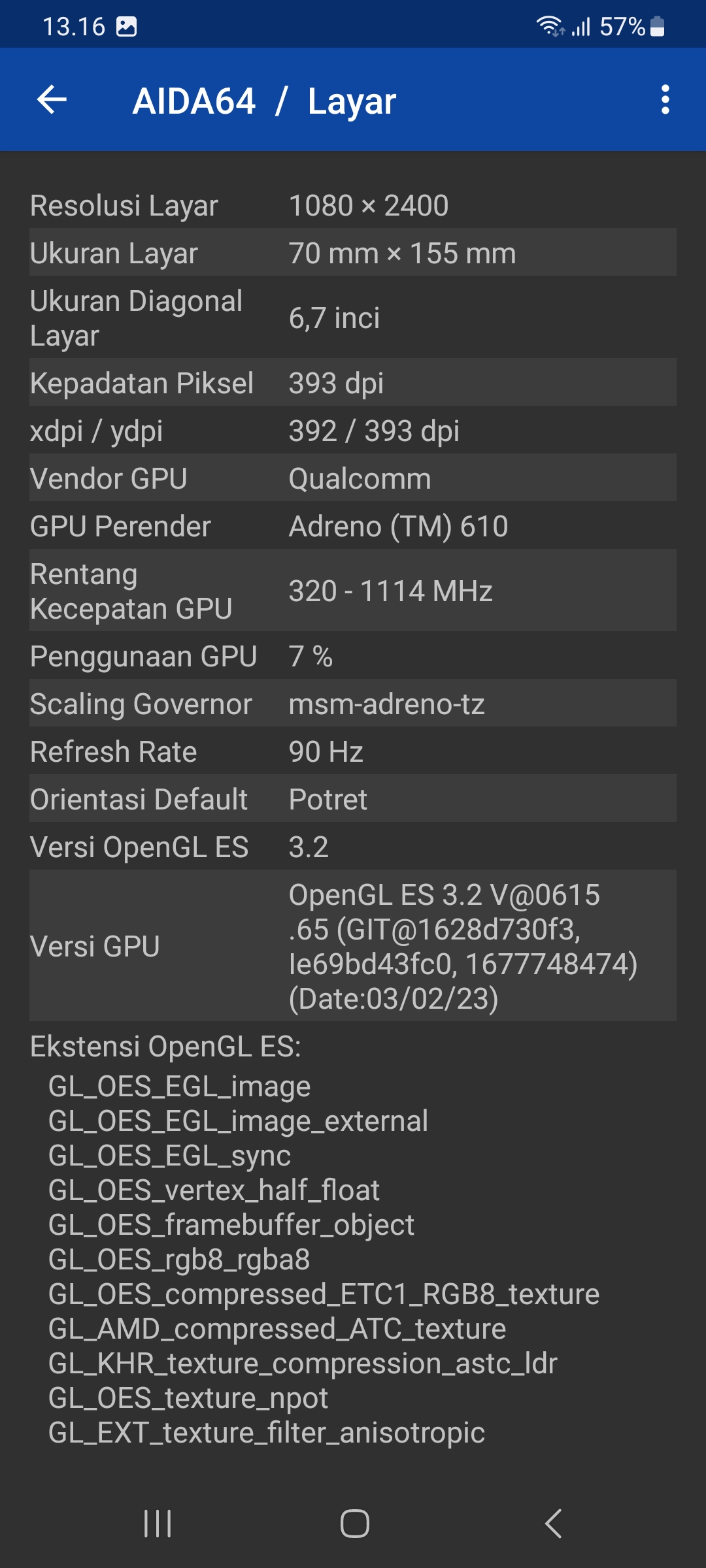

Higher	Qualcomm Adreno 610	26970 marks	115.2%
Higher	Intel HD Graphics 3000 Mobile	29806 marks	127.3%
This Hardware	AMD/ATI Mobility Radeon HD 5450	23419 marks	100%
Lower	AMD Radeon HD 7310	13572 marks	58.0%
Lower	IMG PowerVR Rogue GE8320 680MHz	11663 marks	49.8%

3DMark Vantage - Extreme

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	6770 marks	1,343.3%
Higher	NVIDIA GeForce MX350	10057 marks	1,995.4%
This Hardware	AMD/ATI Mobility Radeon HD 5450	504 marks	100%
Lower	AMD Radeon HD 7310	321 marks	63.7%

3DMark Vantage - Performance

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	15888 marks	1,118.9%
Higher	NVIDIA GeForce MX350	20986 marks	1,477.9%
This Hardware	AMD/ATI Mobility Radeon HD 5450	1420 marks	100%
Lower	AMD Radeon HD 7310	843 marks	59.4%

3DMark03

Rank	Hardware	Score	Performance Percentage
Higher	Intel HD Graphics 3000 Mobile	9179 marks	102.2%
Higher	AMD Radeon HD 6520G	9565 marks	106.5%
This Hardware	AMD/ATI Mobility Radeon HD 5450	8983 marks	100%
Lower	AMD Radeon HD 7310	5807 marks	64.6%

3DMark2000

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	4319 marks	121.7%
Higher	Intel HD Graphics 3000 Mobile	5901 marks	166.3%
This Hardware	AMD/ATI Mobility Radeon HD 5450	3549 marks	100%

3DMark - Cloud Gate

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 6520G	2348 marks	102.0%
Higher	Intel HD Graphics 520 (Mobile)	4589 marks	199.4%
This Hardware	AMD/ATI Mobility Radeon HD 5450	2301 marks	100%
Lower	AMD Radeon HD 7310	1189 marks	51.7%

3DMark - Fire Strike Extreme

Rank	Hardware	Score	Performance Percentage
Higher	AMD Radeon HD 7310	78 marks	102.6%
Higher	Intel HD Graphics 520 (Mobile)	314 marks	413.2%
This Hardware	AMD/ATI Mobility Radeon HD 5450	76 marks	100%

Aquamark

Rank	Hardware	Score	Performance Percentage
Higher	Intel Iris Xe Graphics Mobile (80EUs, Tiger Lake)	221104 marks	304.9%
Higher	NVIDIA GeForce MX350	244805 marks	337.6%
This Hardware	AMD/ATI Mobility Radeon HD 5450	72508 marks	100%
Lower	AMD Radeon HD 7310	38147 marks	52.6%

Geekbench4 - Compute

Rank	Hardware	Score	Performance Percentage
Higher	IMG PowerVR Rogue GE8320 680MHz	3284 marks	110.4%
Higher	Qualcomm Adreno 610	5037 points	169.4%
This Hardware	AMD/ATI Mobility Radeon HD 5450	2974 points	100%
Lower	IMG PowerVR Rogue GE8320 650MHz	2969 points	99.8%
Lower	AMD Radeon HD 7310	2129 points	71.6%

About Mobility Radeon HD 5450

The ATI Mobility Radeon HD 5450 is a mobile graphics card released in 2010, designed for entry-level laptops that require basic GPU acceleration. Based on Terascale 2 architecture, the HD 5450 features 80 stream processors (shaders) and is typically paired with 512MB to 1GB of DDR3 or GDDR3 VRAM, depending on the laptop configuration. It operates at a core clock speed of up to 675 MHz, providing just enough power for light multimedia tasks and low-end 3D workloads.

This GPU supports modern graphics standards of its time, including DirectX 11, OpenGL 4.2, and UVD (Unified Video Decoder), which enhances video playback efficiency and allows smooth playback of HD content such as Blu-ray and 1080p videos. Thanks to UVD, the GPU offloads video decoding tasks from the CPU, resulting in better overall performance in multimedia-centric usage. However, the narrow memory bus and limited shader count make the HD 5450 unsuitable for modern gaming or professional graphics workloads.

When it comes to gaming, the Mobility Radeon HD 5450 can only run older or less demanding games like Counter-Strike: Source, GTA San Andreas, or Warcraft III, often at low resolution and minimum settings to maintain playable frame rates. Newer 3D titles or even moderately intensive games will struggle on this GPU, especially under Windows 10 where driver support is minimal and outdated.

Despite its aging specs, the ATI Mobility Radeon HD 5450 still finds relevance in older laptops like the HP Pavilion dv3-4054TX, especially for users who prioritize basic productivity, web browsing, office work, and media playback. While it lacks the horsepower of modern integrated GPUs, it was a step forward at the time for delivering discrete graphics capabilities in compact notebook designs.

If you're restoring or maintaining an older Windows 7 or Windows 8 system for legacy software or retro computing needs, the Mobility Radeon HD 5450 can still deliver reliable performance within its limitations.

Hardware Detail:

Device: HP Pavilion dv3-4054TX
RAM: 4GB DDR3
OS: Windows 10, Windows 8, Windows 7
