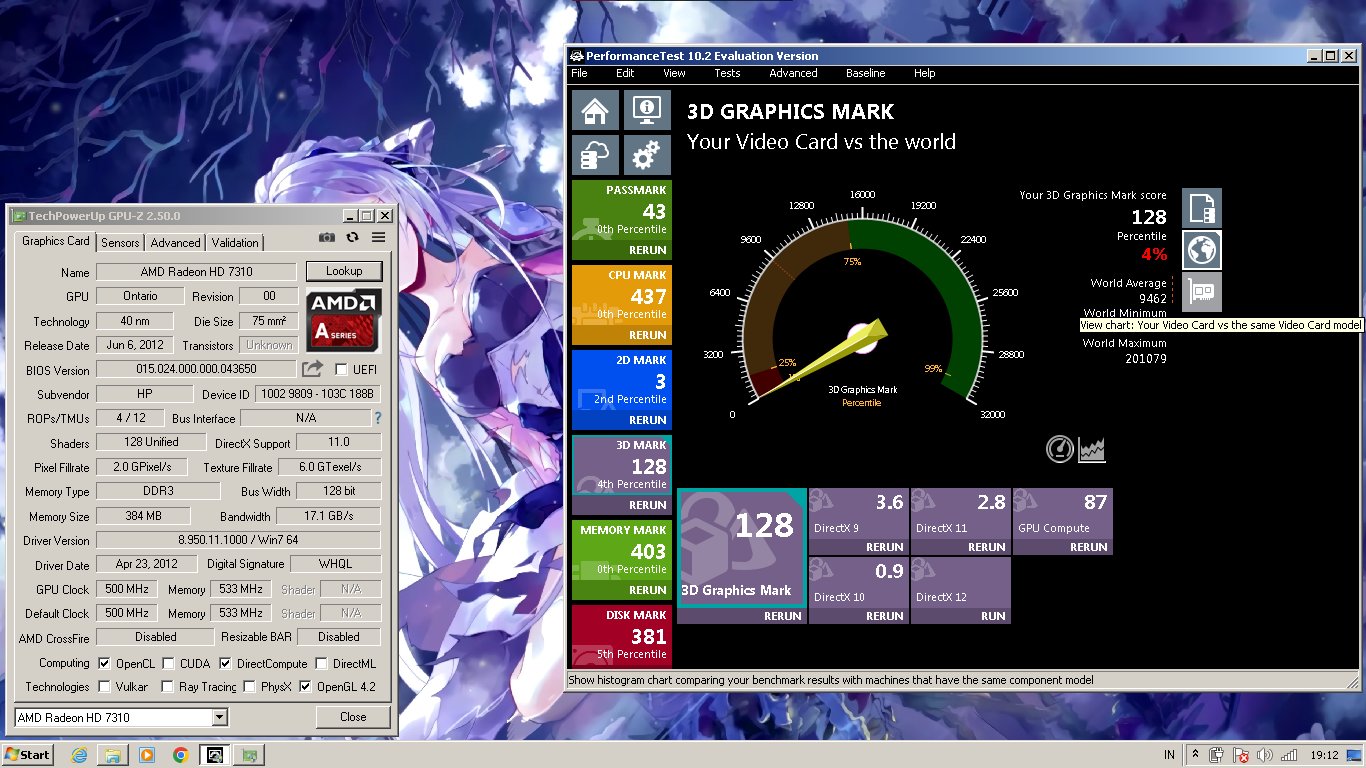

PassMark - PerformanceTest (3D Mark) score 128 marks with a Radeon HD 7310
Thursday, 01 January 1970 07:00 | Update at null
Media Gallery
Screenshot
Device, Setup, etc
URL
https://www.passmark.com/baselines/V10/display.php?id=167215852689http://bit.ly/3hTc0VO
Information Detail
Hardware: AMD Radeon HD 7310
Specs:Architecture : Terascale 2
Codename : Ontario
Chip : -
Core : 80
Memory : 384MB DDR3 (SHARED)
Bus Width : 128 bit
Core Clock : 500MHz
Memory Clock : 533MHz
TDP : -
Technology : 40nm
Bus Interface : Integrated
CPU: AMD E1-1200
See more specification...
Software: PassMark - PerformanceTest (3D Mark)
Score: 128 marks
About: PassMark - PerformanceTest (3D Mark)PassMark - PerformanceTest (3D Mark) is a benchmark test that measures system performance in rendering three-dimensional (3D) graphics, which includes elements such as 3D object rendering, lighting, shadows, textures and other more complex visual effects. It tests the GPU's ability to run 3D graphics simulations with a high level of detail, which is often used to measure performance in games and more graphics-intensive applications.
In 3D Mark, several graphics tests are tested to assess how well the device can handle 3D rendering tasks with high visual quality. This benchmark uses various graphical effects such as tessellation, anti-aliasing, dynamic shading, and mirror reflection, which test the hardware's ability to provide a more realistic graphics experience. The benchmark results from 3D Mark provide insight into the frame rate, graphical stability, and the GPU's ability to handle modern 3D applications and games at various quality settings and resolutions.
The AMD Radeon HD 7310 is an entry-level integrated graphics processor (IGP) that is part of the AMD E1-1200 APU, launched in 2012 for budget-oriented laptops. Based on the Terascale 2 architecture, the Radeon HD 7310 features 80 stream processors (shaders) and runs at a clock speed of up to 500 MHz. While modest in terms of raw power, this GPU was designed to handle essential computing needs with minimal power consumption, making it ideal for ultraportable laptops and low-cost netbooks of its era.
The Radeon HD 7310 supports DirectX 11 and UVD3 (Unified Video Decoder) for smooth HD video playback, making it fairly capable for multimedia tasks such as watching YouTube videos or playing DVDs. However, it does not have dedicated VRAM, relying instead on shared system memory, which means that its performance is significantly influenced by the RAM configuration single-channel DDR3 memory limits its potential, while a dual-channel setup can offer slightly better bandwidth for graphical tasks.
In terms of gaming, the HD 7310 is only suitable for very light or older games, and even then, users will need to lower the resolution and graphics settings to achieve playable frame rates. Titles like Plants vs. Zombies, Angry Birds, or older 2D games can run reasonably well, but 3D games or anything newer than 2012 will likely struggle. The GPU’s aging architecture also limits compatibility and performance in modern applications and web-based 3D content.
Despite its limitations, the Radeon HD 7310 can still serve a purpose in legacy laptops such as the HP 1000 1b05au, especially for users who need a machine for basic productivity tasks, internet browsing, and light media consumption on older operating systems like Windows 7 or Windows 8. For budget-conscious users who still own or restore older laptops, this GPU represents a practical, if dated, solution for everyday computing.
Hardware Detail:
Device: HP 1000 1b05au
CPU: AMD E1-1200
RAM: 4GB DDR3 Single Channel 2 DIMM
OS: Windows 7, Windows 8
