Seagate Momentus Thin ST320LT012-9WS14C

Capacity : 320GB
Family : Momentus Thin 320LT012
Number of Plates : 1
Number of Heads : 2
Rotation : 5400RPM
Interface : SATA-II 3Gbps
Form Factor : 2.5 SATA HDD
Buffer : 16384KB

See more specification

Wednesday, 26 December 2012 14:27 | Update at 3 weeks ago

This page presents the specifications and synthetic benchmark results of the disks Seagate Momentus Thin ST320LT012-9WS14C. The data provides an overview of the hardwares performance based on standardized testing.

Seagate Brand

HDD 2.5 Format

320 GB Capacity

SATA-II 3Gbps Interface

About Seagate ST320LT012-9WS14C

Seagate ST320LT012-9WS14C is a 320GB capacity hard disk drive (HDD) with a slim 2.5-inch form factor, ideal for laptops, notebooks and other portable systems. Designed using a SATA II (3Gbps) interface and a rotation speed of 5400 RPM, this HDD emphasizes power efficiency and quieter operation compared to higher-speed HDDs.

It uses 1 platter and 2 read/write heads, a common configuration for 320GB capacity, with light weight and low power consumption-suitable for mobile devices. Equipped with 16MB of buffer cache, its performance is sufficient for daily tasks such as saving documents, running light applications, or storing multimedia files.

This Seagate ST320LT012-9WS14C performance test was conducted using an HP 1000 1b05AU laptop that still relies on 4GB DDR3 Single Channel RAM with two DIMM slots. The operating system used during the test was Windows 7 64-bit, which is a typical environment for entry-level laptops in this era of HDD usage. The hardware combination reflects the real usage scenarios of older generation laptop users who still rely on mechanical hard disks as the primary storage medium.

In tests using CrystalDiskMark benchmark software, the Seagate ST320LT012-9WS14C hard disk recorded a fairly stable performance for the 5400 RPM HDD class. The sequential read speed reached 84.67 MB/s, while the sequential write speed stood at 83.84 MB/s. These results show that despite being an older generation HDD with modest specifications, its performance is still adequate for everyday light computing needs such as document storage and media playback.

Although its performance falls short of modern SSDs, the Seagate ST320LT012-9WS14C remains a reliable and cost-effective choice for users who need additional internal storage on older laptops, educational systems, or as external media (with a USB case). Its compact size and low power consumption also make it suitable for use in netbooks and other energy-efficient devices.

Device Test:

Device: HP 1000 1b05au
RAM: 4GB DDR3 Single Channel 2 DIMM
OS: Windows 7

Hardware Benchmark Record

This table displays the scores or sequential read & write speeds (for storage types) of various synthetic benchmark applications commonly used to test hardware performance. You can click on the score column to view the submissions page by ID. At that URL, you can browse the submitted results of each application, including viewing screenshots of the benchmark results. For screenshots of benchmark results, you can click the "View" button in the screenshot column.

In total, there are 4 submissions across 4 different benchmark applications, each testing the hardware from a unique angle. This variety allows you to draw a more comprehensive conclusion about the hardware's real-world performance.

Benchmark	SEQ Read	SEQ Write	Facebook/Benchmark URL
AS-SSD	54.55 MB/s	52.68 MB/s	https://bit.ly/3QZLSFu
ATTO Disk Benchmark - 64M	51.51 MB/s	50.44 MB/s	https://bit.ly/3fz6Ygg
Cross Platform Disk Test	59.23 MB/s	42.67 MB/s	http://bit.ly/3EOh1YJ
CrystalDiskMark	84.67 MB/s	83.84 MB/s	https://bit.ly/3ZGqY1k

Nearby Competitors

Shows two other devices with slightly higher scores and two others with slightly lower scores on the same benchmarks. Useful to see how competitive these devices are.

AS-SSD

Rank	Hardware	Read	Write	Performance Percentage
Higher	Kingston Data Traveler Exodia Onyx 64GB	88.98 MB/s	19.04 MB/s	100.7%
Higher	SanDisk Ultra MicroSDHC 32GB	91.20 MB/s	21.10 MB/s	104.7%
This Hardware	Seagate Momentus Thin ST320LT012-9WS14C	54.55 MB/s	52.68 MB/s	100%
Lower	Kingston Canvas Select Plus MicroSDXC 64GB	87.60 MB/s	16.22 MB/s	96.8%
Lower	TOSHIBA MK3252GSX	47.61 MB/s	49.25 MB/s	90.3%

CrystalDiskMark

Rank	Hardware	Read	Write	Performance Percentage
Higher	Hitachi HTS547550A9E384	88.66 MB/s	88.06 MB/s	104.9%
Higher	Lexar JumpDrive V100 32GB	143.53 MB/s	34.33 MB/s	105.5%
This Hardware	Seagate Momentus Thin ST320LT012-9WS14C	84.67 MB/s	83.84 MB/s	100%
Lower	Hitachi HTS543232A7A384	80.74 MB/s	79.69 MB/s	95.2%
Lower	Samsung EVO Plus 64GB	124.57 MB/s	34.55 MB/s	94.4%

ATTO Disk Benchmark - 64M

Rank	Hardware	Read	Write	Performance Percentage
Higher	SanDisk Ultra Flair 64GB	71.71 MB/s	31.05 MB/s	100.8%
Higher	SanDisk Ultra Dual Drive Go OTG USB Type-C USB 3.1 128GB	82.05 MB/s	23.02 MB/s	103.1%
This Hardware	Seagate Momentus Thin ST320LT012-9WS14C	51.51 MB/s	50.44 MB/s	100%
Lower	Hitachi HTS722016K9SA00	50.05 MB/s	49.66 MB/s	97.8%
Lower	TOSHIBA MK3252GSX	49.04 MB/s	50.05 MB/s	97.2%

Cross Platform Disk Test

Rank	Hardware	Read	Write	Performance Percentage
Higher	Kingston Canvas Select Plus MicroSDXC 64GB	89.56 MB/s	15.71 MB/s	103.3%
Higher	Hitachi HTS545050B9A300	63.70 MB/s	44.98 MB/s	106.7%
This Hardware	Seagate Momentus Thin ST320LT012-9WS14C	59.23 MB/s	42.67 MB/s	100%
Lower	Kingston Data Traveler Exodia Onyx 64GB	88.66 MB/s	12.57 MB/s	99.3%
Lower	Hitachi HTS722016K9SA00	44.79 MB/s	39.00 MB/s	82.2%

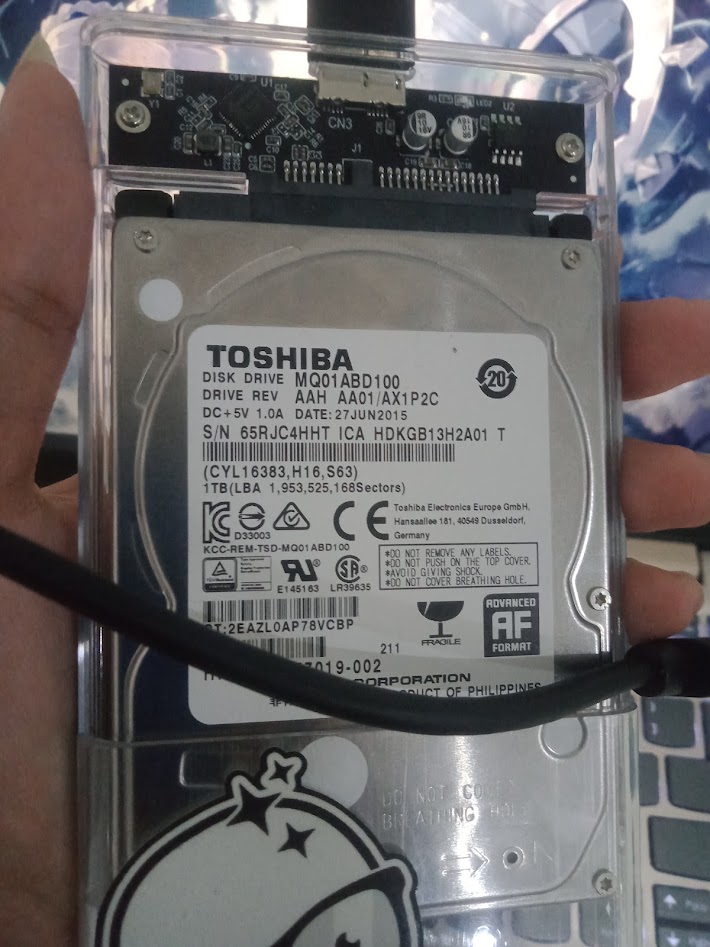

Media Gallery

A collection of photos of tested hardware. These images can help you identify the physical form, model, and variant of the hardware in question. These photos are from our own documentation, and if they are not available we may not be able to document them.
