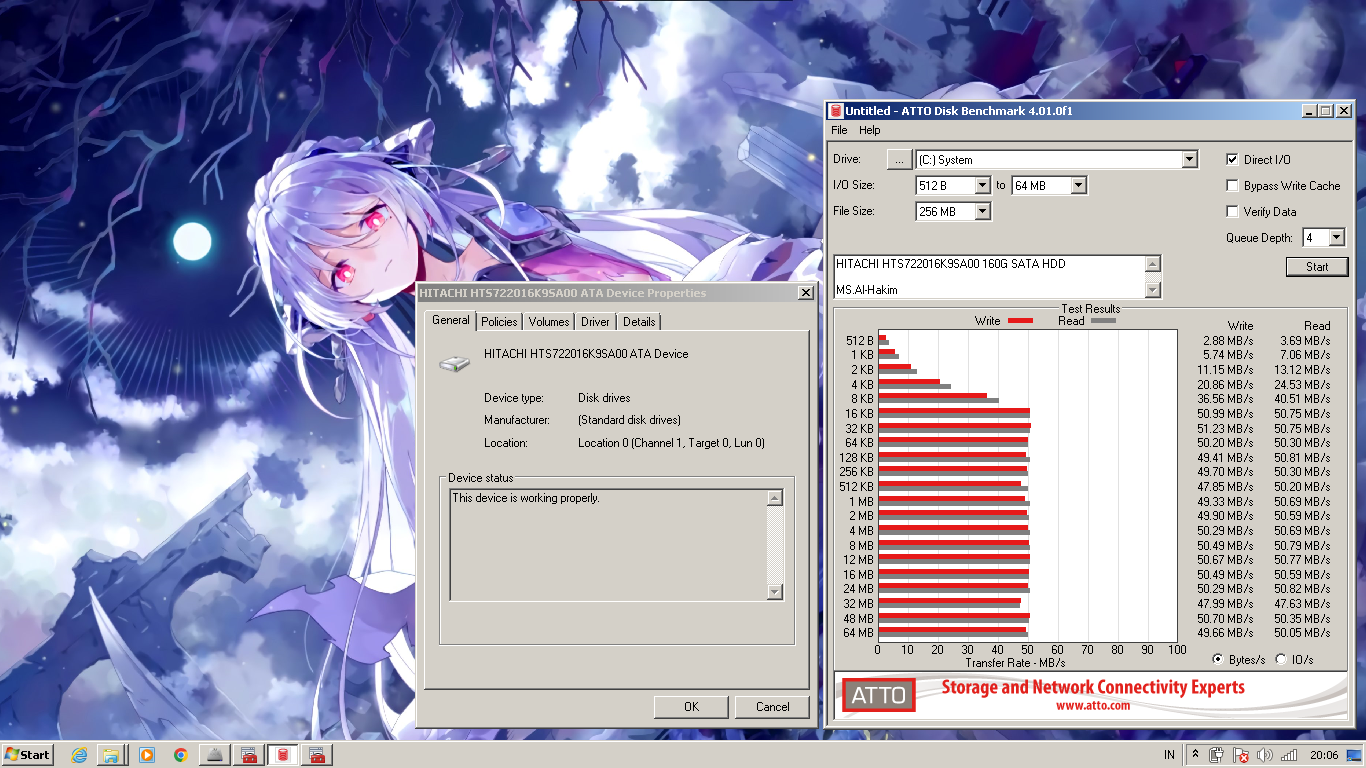

ATTO Disk Benchmark - 64M score Read: 50.05 MB/s Write: 49.66 MB/s with a Hitachi HTS722016K9SA00
Thursday, 01 January 1970 07:00 | Update at null
Media Gallery
Screenshot
Device, Setup, etc
URL
http://bit.ly/3EsEe2zInformation Detail
Hardware: Hitachi HTS722016K9SA00
Specs:Capacity : 160GB
Family : Travelstar 7K200
Number of Plates : 2
Number of Heads : 4
Rotation : 7200RPM
Interface : SATA-I 1.5Gbps
Form Factor : 2.5 SATA HDD
Buffer : 16384KB
See more specification
Software: ATTO Disk Benchmark - 64M
Seq Read: 50.05 MB/s
Seq Write: 49.66 MB/s
About: ATTO Disk Benchmark - 64MATTO Disk Benchmark is a handy harddisk and SSD benchmarking tool.Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. Features: · Transfer sizes from 512KB to 8MB · Transfer lengths from 64KB to 2GB · Support for overlapped I/O · Supports a variety of queue depths · I/O comparisons with various test patterns · Timed mode allows continuous testing · Non-destructive performance measurement on formatted drives.
The Hitachi HTS722016K9SA00 is a thick design 2.5-inch hard disk with a capacity of 160GB, designed for laptops and other portable devices. Unlike most laptop HDDs that use a rotation speed of 5400 RPM, this model offers a speed of 7200 RPM, providing a significant improvement in read/write performance, especially in computing tasks that require fast data access.
Equipped with 16MB of buffer cache, this HDD is capable of handling heavier workloads, such as multitasking, application installation, or activities with high I/O intensity. This speed gives it an edge over regular HDDs in terms of response time and efficiency when running an operating system or opening large files. Although its capacity is relatively small when compared to today's storage standards, the HTS722016K9SA00 is still very suitable for use as additional storage or to revive older systems that still rely on 2.5” SATA storage.
The test was conducted using an HP 1000 1b05AU laptop with the following configuration: AMD E1-1200 CPU, 4GB DDR3 RAM (2x2GB in single-channel mode due to CPU limitations), and Windows 7 64-bit operating system. The HDD was installed via an HDD Caddy in place of an optical drive, demonstrating the flexibility of using it as a second storage in a system with an additional SATA slot.
During testing, the drive's performance showed fast response when booting the operating system, opening heavy applications, and performing large file transfers. Despite its limited capacity, the 7200 RPM speed and larger cache compared to 5400 RPM HDDs make it an ideal choice for users who prioritize access speed over large capacity.
The Hitachi HTS722016K9SA00 is still an attractive option for users who want fast yet affordable storage, especially in legacy system configurations or as a secondary drive for modern systems with specific needs.
Tested on:
Device: HP 1000 1b05au (using HDD Enclosure)
Specs:
CPU: AMD E1-1200
OS: Windows 7
RAM: 2x2GB (Does not support dual channel due to limitations of the CPU, currently running single channel mode)
* For CrystalDiskMark the hard drive is directly run on the main sata port, and the hard drive is used as the operating system.
* Not Avaiable
