ATTO Disk Benchmark - 64M score Read: 51.51 MB/s Write: 50.44 MB/s with a Seagate ST320LT012-9WS14C
Thursday, 01 January 1970 07:00 | Update at null
Media Gallery
Screenshot
Device, Setup, etc
URL
https://bit.ly/3fz6YggInformation Detail
Hardware: Seagate Momentus Thin ST320LT012-9WS14C
Specs:Capacity : 320GB
Family : Momentus Thin 320LT012
Number of Plates : 1
Number of Heads : 2
Rotation : 5400RPM
Interface : SATA-II 3Gbps
Form Factor : 2.5 SATA HDD
Buffer : 16384KB
See more specification

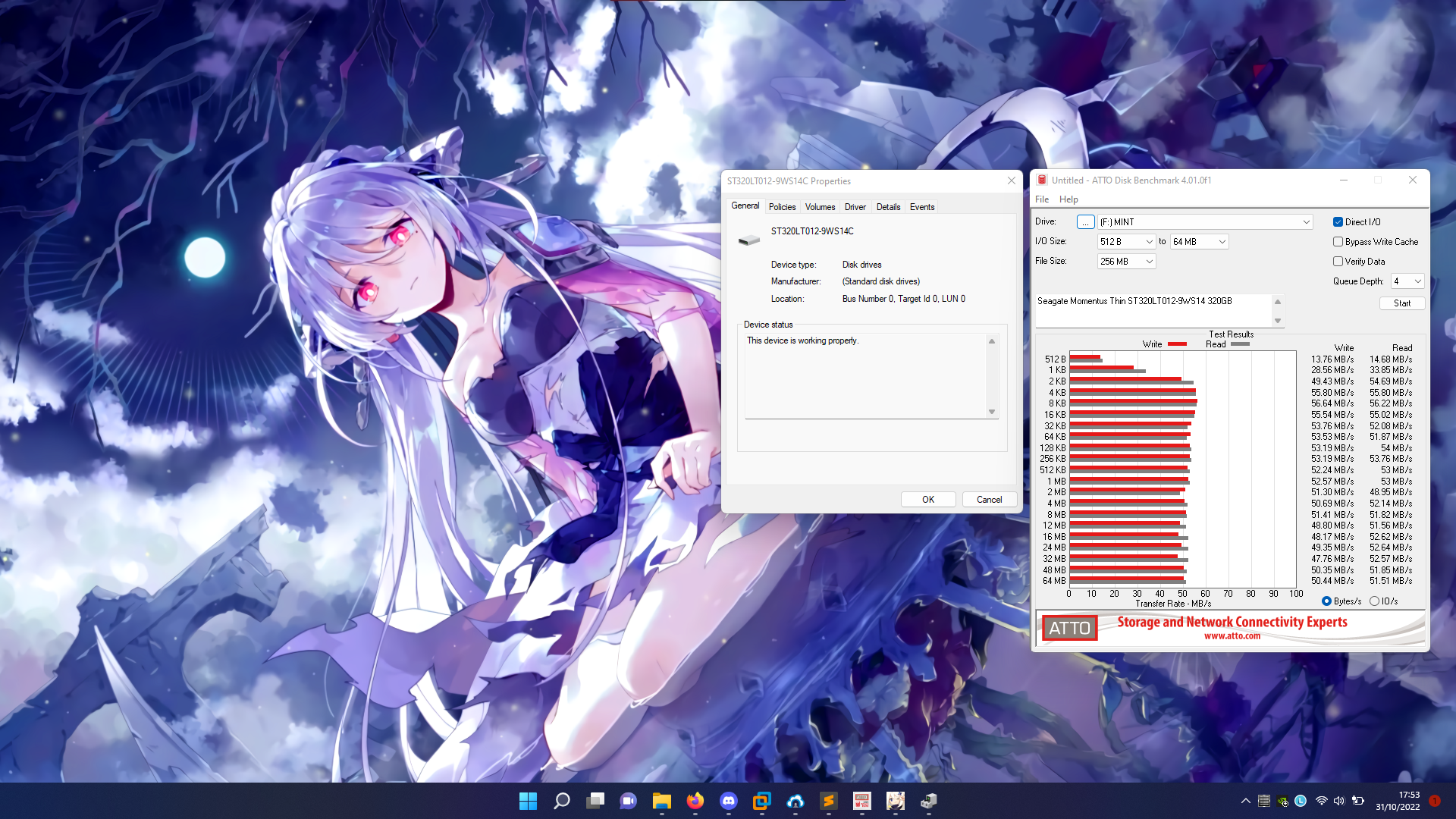

Software: ATTO Disk Benchmark - 64M
Seq Read: 51.51 MB/s
Seq Write: 50.44 MB/s
About: ATTO Disk Benchmark - 64MATTO Disk Benchmark is a handy harddisk and SSD benchmarking tool.Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. Features: · Transfer sizes from 512KB to 8MB · Transfer lengths from 64KB to 2GB · Support for overlapped I/O · Supports a variety of queue depths · I/O comparisons with various test patterns · Timed mode allows continuous testing · Non-destructive performance measurement on formatted drives.
Seagate ST320LT012-9WS14C is a 320GB capacity hard disk drive (HDD) with a slim 2.5-inch form factor, ideal for laptops, notebooks and other portable systems. Designed using a SATA II (3Gbps) interface and a rotation speed of 5400 RPM, this HDD emphasizes power efficiency and quieter operation compared to higher-speed HDDs.
It uses 1 platter and 2 read/write heads, a common configuration for 320GB capacity, with light weight and low power consumption-suitable for mobile devices. Equipped with 16MB of buffer cache, its performance is sufficient for daily tasks such as saving documents, running light applications, or storing multimedia files.
This Seagate ST320LT012-9WS14C performance test was conducted using an HP 1000 1b05AU laptop that still relies on 4GB DDR3 Single Channel RAM with two DIMM slots. The operating system used during the test was Windows 7 64-bit, which is a typical environment for entry-level laptops in this era of HDD usage. The hardware combination reflects the real usage scenarios of older generation laptop users who still rely on mechanical hard disks as the primary storage medium.
In tests using CrystalDiskMark benchmark software, the Seagate ST320LT012-9WS14C hard disk recorded a fairly stable performance for the 5400 RPM HDD class. The sequential read speed reached 84.67 MB/s, while the sequential write speed stood at 83.84 MB/s. These results show that despite being an older generation HDD with modest specifications, its performance is still adequate for everyday light computing needs such as document storage and media playback.
Although its performance falls short of modern SSDs, the Seagate ST320LT012-9WS14C remains a reliable and cost-effective choice for users who need additional internal storage on older laptops, educational systems, or as external media (with a USB case). Its compact size and low power consumption also make it suitable for use in netbooks and other energy-efficient devices.
Device Test:
Device: HP 1000 1b05au
RAM: 4GB DDR3 Single Channel 2 DIMM
OS: Windows 7
