ATTO Disk Benchmark - 64M score Read: 59.40 MB/s Write: 62.21 MB/s with a Hitachi HTS545050B9A300
Tuesday, 19 September 2023 20:58 | Update at 1 year ago
Media Gallery
Screenshot
Device, Setup, etc
URL
Information Detail
Hardware: Hitachi HTS545050B9A300
Specs:Capacity : 500GB
Family : Travelstar 5K500.B
Number of Plates : 2
Number of Heads : 4
Rotation : 5400RPM
Interface : SATA-II 3Gbps
Form Factor : 2.5 SATA HDD
Buffer : 8192KB
See more specification...

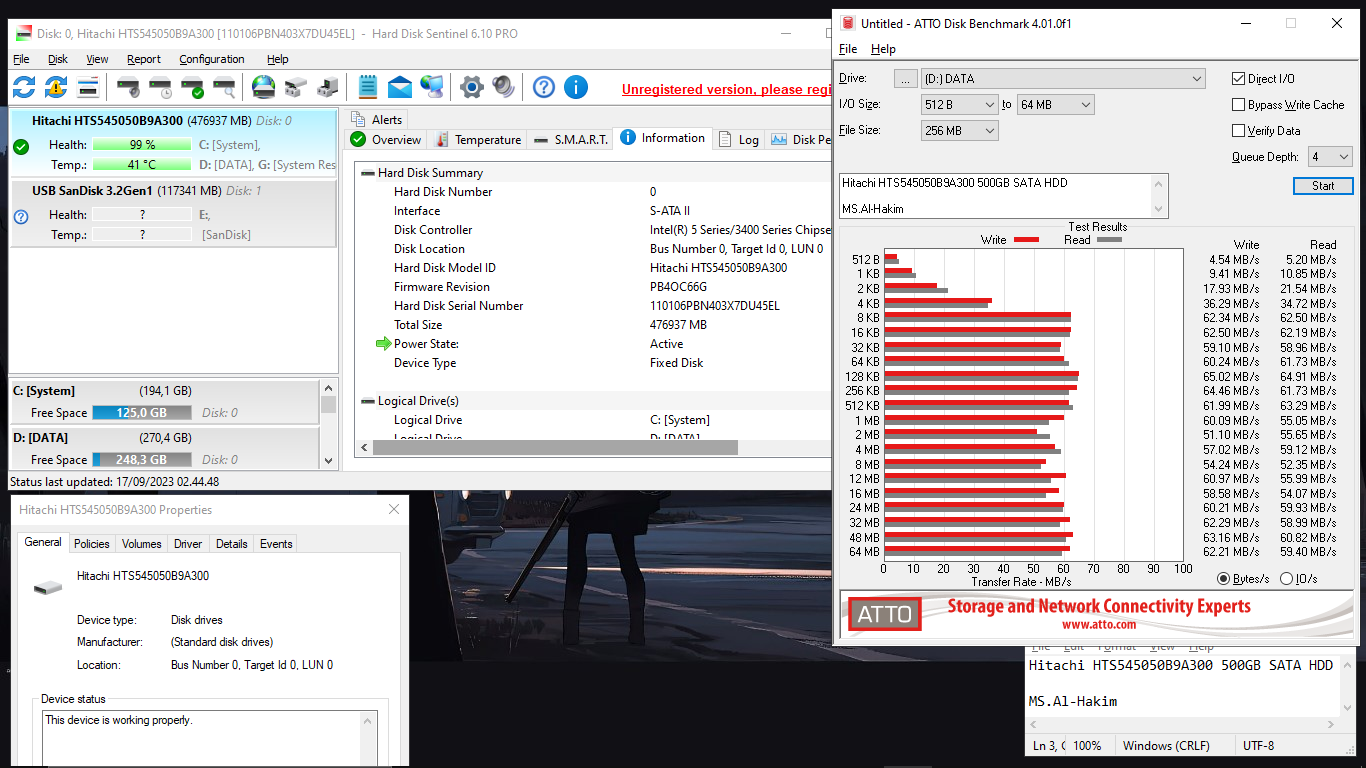

Software: ATTO Disk Benchmark - 64M
Seq Read: 59.40 MB/s
Seq Write: 62.21 MB/s
About: ATTO Disk Benchmark - 64MATTO Disk Benchmark is a handy harddisk and SSD benchmarking tool.Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. Features: · Transfer sizes from 512KB to 8MB · Transfer lengths from 64KB to 2GB · Support for overlapped I/O · Supports a variety of queue depths · I/O comparisons with various test patterns · Timed mode allows continuous testing · Non-destructive performance measurement on formatted drives.
The Hitachi HTS545050B9A300 is a chunky 2.5-inch hard disk with a 500GB capacity, designed for laptops and other portable devices that still rely on SATA-based storage media. It uses a 3Gbps SATA interface (SATA II) and operates at a rotational speed of 5400 RPM, providing a combination of low power consumption and sufficient performance for everyday computing tasks.
Equipped with 8MB of cache, the drive is capable of handling common storage needs such as documents, office applications, multimedia files, and operating system data. Although it has begun to be eclipsed by the speed and efficiency of SSDs, the HTS545050B9A300 remains an economical choice for users who need large capacity without breaking the bank.
The test was conducted using an HP Pavilion dv3-4054TX laptop, with the following configuration: Intel Core i7-720QM processor, 4GB DDR3 Single Channel RAM, and Windows 10 64-bit operating system. In this configuration, the HDD demonstrated standard performance for its class-it was able to run the operating system and basic applications such as browsers, media players, and Office documents stably.
Although not designed for high speeds, the Hitachi HTS545050B9A300 is still reliable for casual users or students, and is suitable for use as a second storage drive in modern systems via an external enclosure. With the Hitachi brand's reputation for reliability, this HDD offers a good balance between price, capacity, and power consumption.
Device Test:
Device: HP Pavilion dv3-4054TX (on HDD Caddy)
CPU: i7 720QM
RAM: 4GB DDR3 Single Channel
OS: Windows 10
