ATTO Disk Benchmark - 64M score Read: 1000.00 MB/s Write: 589.86 MB/s with a KBG30ZMV256G
Saturday, 19 August 2023 10:47 | Update at 1 year ago
Media Gallery

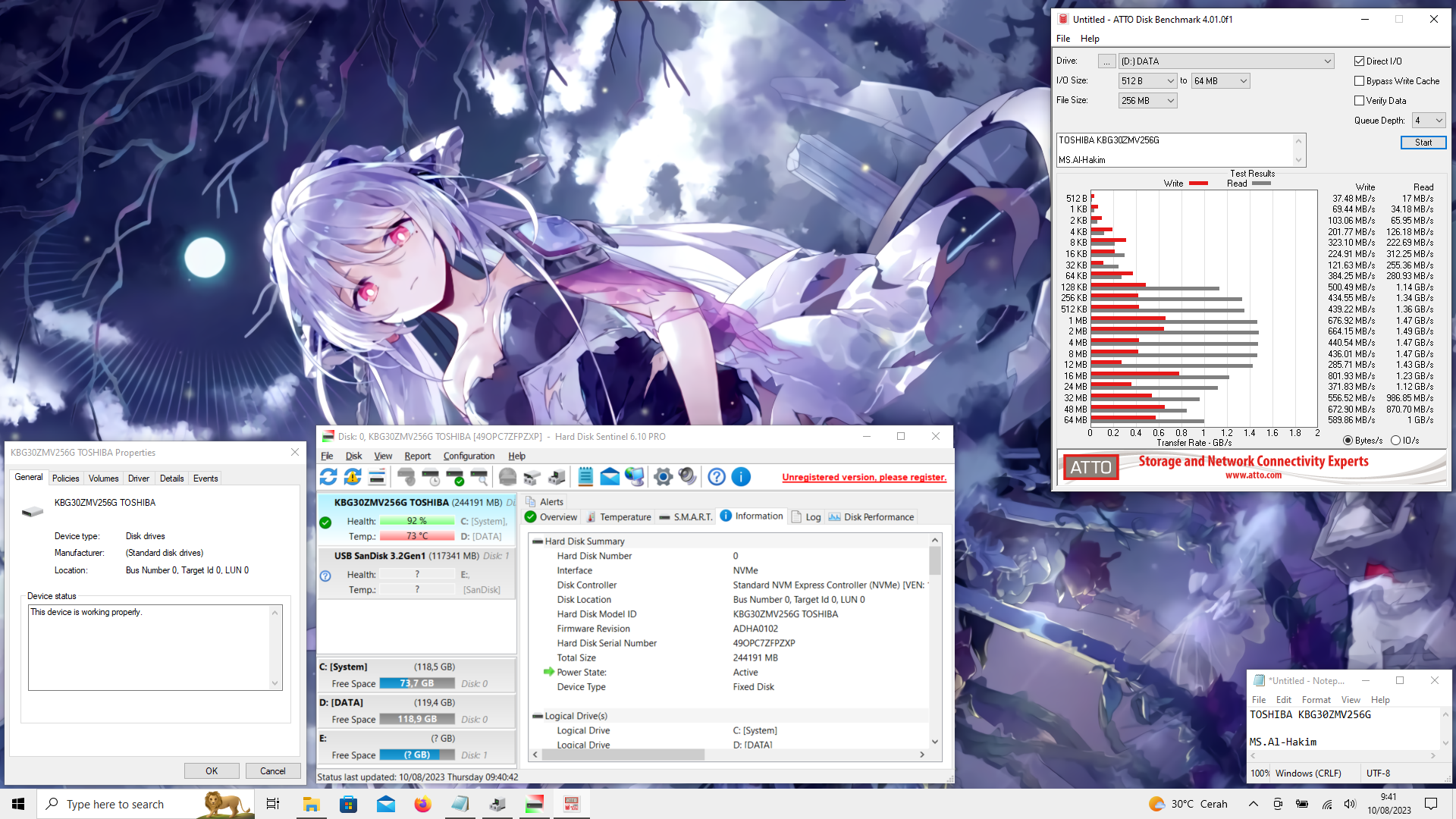

Screenshot
Device, Setup, etc
URL
Information Detail
Hardware: TOSHIBA KBG30ZMV256G
Specs:Capacity : 256GB
NAND Flash : Toshiba 64-Layer BiCS FLASH
Controller : Toshiba MCP
Interface : PCIe 3.0 x2
Form Factor : M.2 2280 NVMe SSD
TBW : -
DRAM Cache : -
See more specification
Software: ATTO Disk Benchmark - 64M
Seq Read: 1000.00 MB/s
Seq Write: 589.86 MB/s
About: ATTO Disk Benchmark - 64MATTO Disk Benchmark is a handy harddisk and SSD benchmarking tool.Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. Features: · Transfer sizes from 512KB to 8MB · Transfer lengths from 64KB to 2GB · Support for overlapped I/O · Supports a variety of queue depths · I/O comparisons with various test patterns · Timed mode allows continuous testing · Non-destructive performance measurement on formatted drives.
The TOSHIBA KBG30ZMV256G is a 256GB NVMe solid-state drive (SSD) specifically designed to deliver high performance in modern computing devices such as ultrabooks, thin laptops and space-constrained systems. Sporting an M.2 2280 form factor, this SSD offers an ideal combination of high speed and compact design, making it an excellent choice for users who require fast storage without sacrificing physical space within the device.
It is built with a PCIe Gen3 x2 interface and supports the NVMe 1.3 protocol, which is significantly faster than traditional SATA-based SSDs. Thanks to 3D NAND flash technology, the TOSHIBA KBG30ZMV256G is able to deliver consistent performance and better power efficiency, while extending the lifetime and reliability of the device. This technology also contributes to low power consumption, which is especially important for laptops and mobile devices that rely on battery efficiency.
In tests conducted using a ThinkPad T470 with an Intel Core i5-6300U processor, 8GB of RAM, and Windows 10 22H2 operating system, this SSD performed very well for a variety of daily computing needs. Based on the CrystalDiskMark benchmark, read speeds reached 774.69 MB/s and write speeds of 401.20 MB/s. Tests with the ATTO Disk Benchmark showed read speeds of up to 1000 MB/s and 589.86 MB/s write, while in the AS-SSD Benchmark, read speeds jumped to 1363.84 MB/s and 786.62 MB/s write. These results show that the SSD is capable of handling demanding tasks such as fast booting, large application loads and large file transfers very efficiently.
Overall, the TOSHIBA KBG30ZMV256G is an ideal choice for users who want an NVMe storage upgrade with high speed, low power consumption and a compact design. Suitable for professionals who require consistent performance under high mobility, this SSD also offers added value in terms of energy efficiency and long-term durability. As a product from a reputable brand like Toshiba (now Kioxia), its reliability and quality have been proven in the global market.
Device test (testbed):
Device: ThinkPad T470
CPU: i5-6300U
RAM: 8GB RAM
OS: Windows 10 22H2
