PassMark - Performance Test (Disks) score Read: 55.9 MB/s Write: 22.8 MB/s with a THGBMHG6C1LBAIL
Saturday, 19 August 2023 06:33 | Update at 1 year ago
Media Gallery
Screenshot
Device, Setup, etc
URL
Information Detail
Hardware: KIOXIA THGBMHG6C1LBAIL
Specs:Capacity : 8GB
Type : eMMC 5.1
Brand : KIOXIA
Model: THGBMHG6C1LBAIL
Controller : -
Interface : BGA153
Form Factor : eMMC
TBW : -
DRAM Cache : -
See more specification...
Software: PassMark - Performance Test (Disks)
Seq Read: 55.9 MB/s
Seq Write: 22.8 MB/s
About: PassMark - Performance Test (Disks)PassMark - PerformanceTest (Disks) is a benchmark test used to measure the performance of storage devices in a system, be it HDDs, SSDs, or other storage devices. This test assesses the read/write speed of storage devices through various tests that include sequential read/write, random read/write, as well as latency and IOPS (Input/Output Operations Per Second) testing. These benchmarks give an idea of how storage devices can handle diverse workloads in day-to-day operations.
They are particularly useful for assessing data transfer speeds on different types of storage media, including faster SSDs or slower HDDs, as well as providing better insight into device performance in applications that require large data processing, such as video editing, database processing, and file system operations. Benchmark results can help in determining whether a storage system is capable of meeting the needs of applications that require low latency and high read/write speeds.
The KIOXIA THGBMHG6C1LBAIL is an 8GB eMMC (embedded MultiMediaCard) storage module designed for use in small electronic devices such as smartphones, tablets, set-top boxes (STBs), IoT devices, and other embedded systems. Featuring the latest 3D NAND flash technology from KIOXIA (formerly Toshiba Memory), it offers a blend of performance, power efficiency, and long-term reliability.
As part of the eMMC 5.1 standard, the KIOXIA THGBMHG6C1LBAIL delivers improved read and write speeds over previous generations, while maintaining low power consumption. The module combines NAND flash and controller in a single package, simplifying integration in embedded systems and shortening product development time for manufacturers. With a compact and power-efficient design, this storage is perfect for devices that require a small footprint and high durability, without sacrificing performance stability.

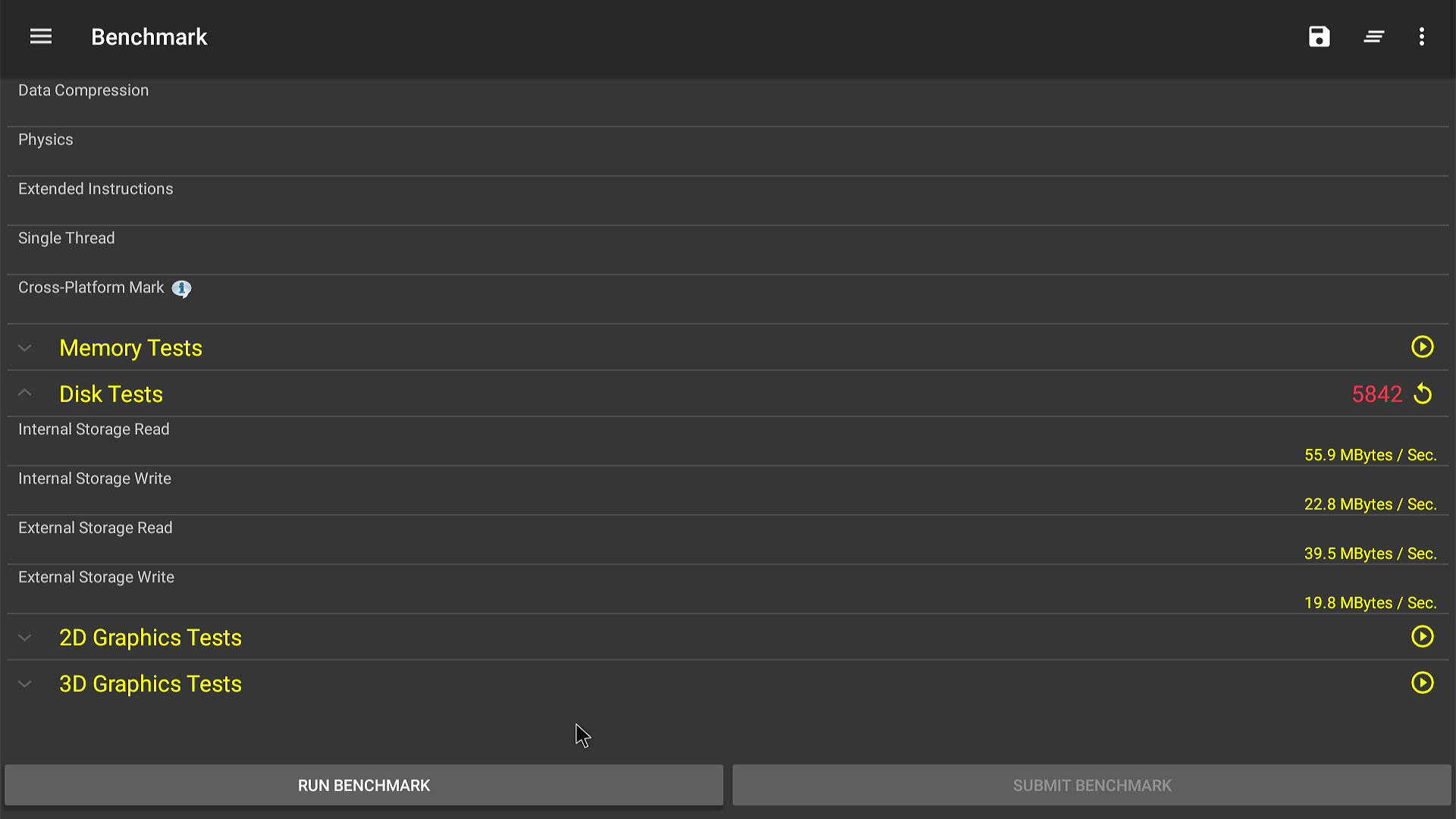

In tests conducted on the FiberHome HG680P device (IndiHome STB) which uses an Amlogic S905X SoC, Mali-450 MP GPU, and 2GB of RAM, the KIOXIA THGBMHG6C1LBAIL showed a pretty solid performance for the eMMC 5.1 category. Based on the PassMark Performance Test (Disks) benchmark, the read speed reached 55.9 MB/s, while the write speed recorded 22.8 MB/s. In the Cross Platform Disk Test (Mobile), the read speed stood at 37.65 MB/s and write 20.44 MB/s. These results reflect the eMMC's capability to run basic applications, video streaming, system boot, and other light tasks consistently.
Overall, the KIOXIA THGBMHG6C1LBAIL is an economical yet reliable embedded storage solution, ideal for entry-level to mid-range devices that require well-performing, efficient, and stable internal storage. Backed by KIOXIA's big name in NAND flash and memory technology, this eMMC is a great choice for embedded system projects and low-power consumer devices that require efficiency without sacrificing quality.

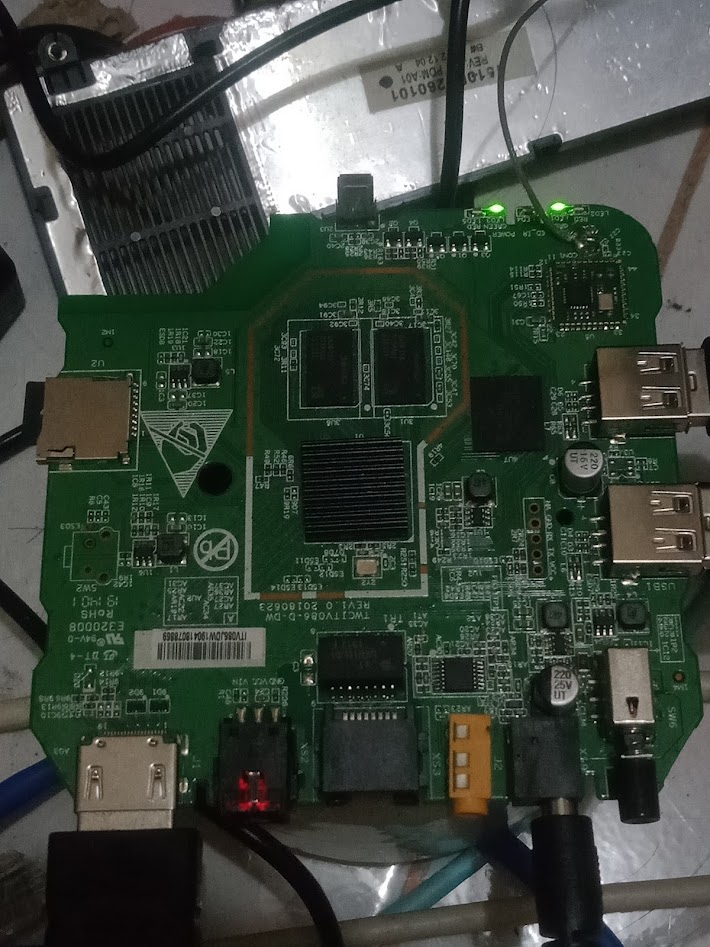

Device test (testbed):
Device: FiberHome HG680P (IndiHome TV Box)
CPU: Amlogics 905X
GPU: Mali 450 MP
RAM: 2GB
Storage: 8GB
* Not Avaiable
