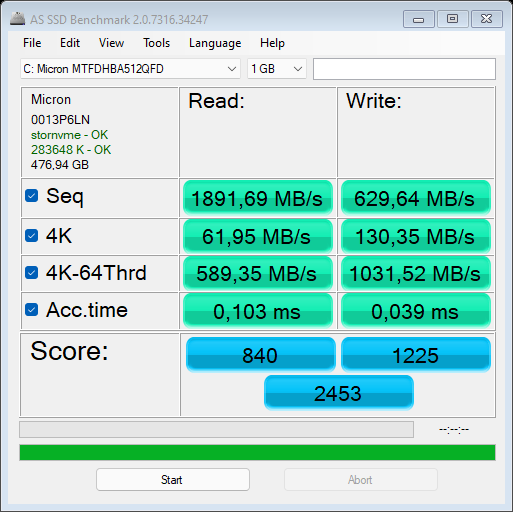

AS-SSD score Read: 1891.69 MB/s Write: 629.64 MB/s with a Micron MTFDHBA512QFD
Thursday, 01 January 1970 07:00 | Update at null
Media Gallery
Screenshot
Device, Setup, etc
URL
https://bit.ly/3cP8xVRInformation Detail
Hardware: Micron 2210 MTFDHBA512QFD
Specs:Capacity : 512GB
NAND Flash : Micron 96-layer 3D QLC
Controller : Silicon Motion SM2263ENG
Interface : PCIe 3.0 x4
Form Factor : M.2 2280 NVMe SSD
TBW : -
DRAM Cache : -
See more specification...
Software: AS-SSD
Seq Read: 1891.69 MB/s
Seq Write: 629.64 MB/s
About: AS-SSDWith AS SSD Benchmark you can determine your SSD drive's performance by conducting several specific tests. Test the sequential or random read/write performance without using the cache. AS SSD Benchmark reads/writes a 1 GByte file as well as randomly chosen 4K blocks. Additionally, it performs the tests using 1 or 64 threads and it determines the SSD's access time. Two extra benchmark tests examine the drive's behaviour when (1) copying a few big files, a lot of small files and a mixture of file sizes by using cached copy functions of your OS as well as (2) reading/writing data depending on the data's compressibility.
The Micron 2210 MTFDHBA512QFD is a 512GB capacity NVMe SSD that uses the PCIe Gen 3.0 x4 interface and utilizes QLC NAND flash, designed to provide the ideal combination of large capacity and affordability compared to TLC-based SSDs. One of the key components of this SSD's performance is the use of the Silicon Motion SM2263ENG controller, which is known for efficiently managing the high performance and low power consumption of QLC-based NVMe SSDs.
With this controller, the Micron 2210 is able to maximize the potential of QLC NAND while maintaining operational stability and efficiency. In tests using CrystalDiskMark, the SSD recorded speeds of up to 2242.12 MB/s read and 1148.16 MB/s write, while in AS-SSD Benchmark, the results were 1891.69 MB/s read and 629.64 MB/s write. This performance is perfectly sufficient for multitasking, fast system booting, and large file processing.
Testing was conducted on a Lenovo IdeaPad Slim 3i 14ITL6 device, with a 12GB DDR4 3200MHz Dual Channel (8+4) RAM configuration and running Windows 10 and Windows 11 22H2 operating systems. These test platforms are representative of modern systems that are compatible with the high performance these SSDs offer.
With its M.2 2280 form factor and support for technologies such as TRIM, S.M.A.R.T. and LDPC ECC, the Micron 2210 512GB is suitable for laptop and desktop users who want fast and efficient storage with sufficient endurance for daily workloads and light-medium productivity.
Device Test:
Device: Lenovo IdeaPad Slim 3i 14ITL6
RAM: 12GB DDR4 3200MHz Dual Channel (8+4)
OS: Windows 10, Windows 11 22H2
