FiberHome HG680-P
FiberHome • TV Box • Android 6
FiberHome
TV Box
Android 6
Amlogic S905X-BV
Mali-450 MP
| What is FiberHome HG680-P | |
| The FiberHome HG680-P is an Android TV Box commonly used for IPTV services, featuring a compact design and essential multimedia capabilities. Powered by an Amlogic S905X chipset, it supports 4K video output and runs on Android 6.0, providing users access to a range of streaming apps. It's typically bundled by ISPs for home entertainment systems. |
| General Specification | |
| Brand | FiberHome |
| Model | HG680-P |
| OS | Android 6.0 |
| Release Date | 2018 |
| Performance | |
| CPU | Amlogic S905X Quad-Core Cortex-A53 |
| GPU | Mali-450 |
| RAM | 2 GB DDR3 |
| Storage | 8 GB eMMC (expandable via microSD) |
| Display | |
| Resolution | Up to 3840 x 2160 (4K UHD) |
| Refresh Rate | - |
| Aspect Ratio | - |
| Port & Connectivity | |
| USB | 2x USB 2.0 |
| HDMI | 1x HDMI 2.0a |
| Ethernet | 1x RJ45 10/100Mbps |
| Wi-Fi | 802.11 b/g/n 2.4GHz |
| Bluetooth | No |
| Physical | |
| Color | Black |
| Material | Plastic enclosure |
| Special Features | |
| • No Play Store, supports APK sideloading | |
| • Typically used by ISPs for IPTV services | |
| • Supports 4K H.265 decoding | |
| • Infrared remote control included | |
| • YouTube, Netflix (basic version), Web browser |

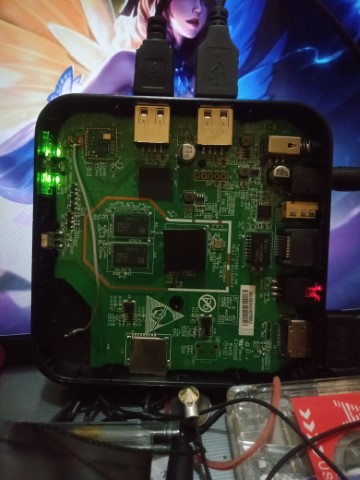

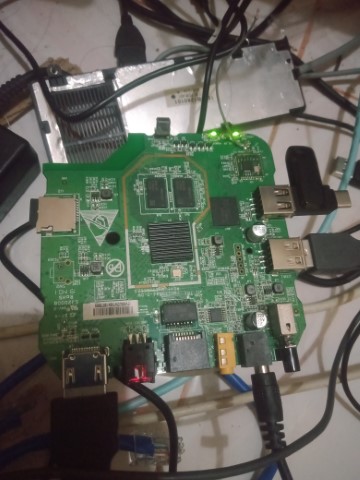

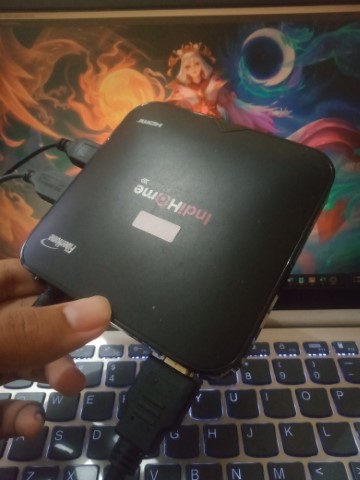

Image Gallery
This section features visual documentation of the device in question, including front, back, side views, as well as other important details such as ports, vents, and button layouts. This gallery helps users get a more accurate picture of the physical design, proportional dimensions, and construction elements of the device. Suitable for pre-purchase visual evaluation as well as design comparison between models.
FiberHome HG680-P Benchmark Result
The benchmark data below reflects the performance of the main components (CPU/SoC and GPU) Amlogic S905X-BV and Mali-450 MP used in this device, based on test results using various benchmark applications.
This tool has been tested through 14 benchmark submissions: 7 for processors and 7 for graphics cards.
| No. | Benchmark | Hardware | Score |
|---|---|---|---|
| 1 | 3DMark - Ice Storm | ARM Mali-450 MP | 6715 marks |
| 2 | 3DMark - Ice Storm Extreme | ARM Mali-450 MP | 4179 marks |
| 3 | AnTuTu Benchmark v9 (Mobile) - CPU | Amlogic S905X-BV | 17832 points |
| 4 | GFXBench – T-Rex ES 2.0 | ARM Mali-450 MP | 11 FPS |
| 5 | GPU Mark (Mobile) | ARM Mali-450 MP | 387600 marks |
| 6 | Geekbench3 - Multi Core | Amlogic S905X-BV | 1926 points |
| 7 | Geekbench3 - Single Core | Amlogic S905X-BV | 652 points |
| 8 | Geekbench4 - Compute | ARM Mali-450 MP | 1149 points |
| 9 | Geekbench4 - Multi Core | Amlogic S905X-BV | 1791 points |
| 10 | Geekbench4 - Single Core | Amlogic S905X-BV | 634 points |
| 11 | PCMark for Android - Work 3.0 Performance (Mobile) | Amlogic S905X-BV | 2326 points |
| 12 | PassMark - PerformanceTest (2D Mark) | ARM Mali-450 MP | 4857 marks |
| 13 | PassMark - PerformanceTest (3D Mark) | ARM Mali-450 MP | 9005 marks |
| 14 | PassMark - PerformanceTest (CPU Mark) | Amlogic S905X-BV | 579 points |
