Lenovo ThinkPad T470
Lenovo • Laptop • Windows 10
Lenovo
Brand
Laptop
Device Type
Windows 10
OS Version
i5-6300U
SoC / Processor
HD Graphics 520 (Mobile)
GPU
| What is Lenovo ThinkPad T470 | |
| The Lenovo ThinkPad T470 is a business-class laptop known for its durability, excellent keyboard, and modular design. Powered by a 6th generation Intel Core i5-6300U processor, it balances performance and efficiency for office tasks and general productivity. With options for SSD storage and upgradable RAM, the T470 remains a popular choice for professionals seeking reliability and security in a portable form factor. |
| General Specification | |
| Brand | Lenovo |
| Model | ThinkPad T470 |
| OS | Windows 10 Pro |
| Release Date | 2017 |
| Performance | |
| CPU | Intel Core i5-6300U (2-core, 4-thread, up to 3.0 GHz) |
| GPU | Intel HD Graphics 520 |
| RAM | 8 GB DDR4 (upgradable to 32 GB) |
| Storage | 256 GB SATA or NVMe SSD (varies by configuration) |
| Display | |
| Size | 14 inch |
| Resolution | 1920x1080 (Full HD) |
| Panel | IPS |
| Refresh Rate | 60Hz |
| Aspect Ratio | 16:9 |
| Touchscreen | Optional |
| Battery | |
| Type | Lithium-ion |
| Capacity | Up to 72 Wh (with extended battery) |
| Estimated Life | Up to 14 hours |
| Wireless Connectivity | |
| Wi-Fi | Wi-Fi 802.11ac |
| Bluetooth | Bluetooth 4.1 |
| Port & Connetivity | |
| USB | 3x USB-A 3.0, 1x USB-C |
| HDMI | 1x HDMI 1.4 |
| Ethernet | 1x RJ-45 |
| Dimensions & Body | |
| Weight | 1.58 kg |
| Thickness | 19.95 mm |
| Width | 336.6 mm |
| Depth | 232.5 mm |
| Material | Magnesium alloy chassis with reinforced plastic |
| Color | Black |
| Features | |
| Keyboard | Backlit Keyboard (optional) |
| Fingerprint | Yes |
| Webcam | HD Webcam (720p) |
| Audio | Stereo speakers, Dolby Audio |
| Other | Spill-resistant keyboard, TrackPoint |
| Special Features | |
| • Stereo speakers, Dolby Audio | |
| • Spill-resistant keyboard, TrackPoint | |
| • HD Webcam (720p) | |
| • Backlit Keyboard (optional) | |
| • Yes |

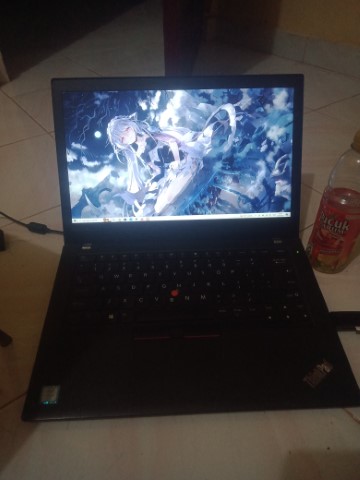

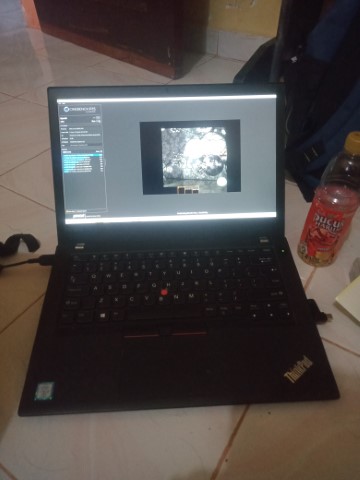

Image Gallery
This section features visual documentation of the device in question, including front, back, side views, as well as other important details such as ports, vents, and button layouts. This gallery helps users get a more accurate picture of the physical design, proportional dimensions, and construction elements of the device. Suitable for pre-purchase visual evaluation as well as design comparison between models.

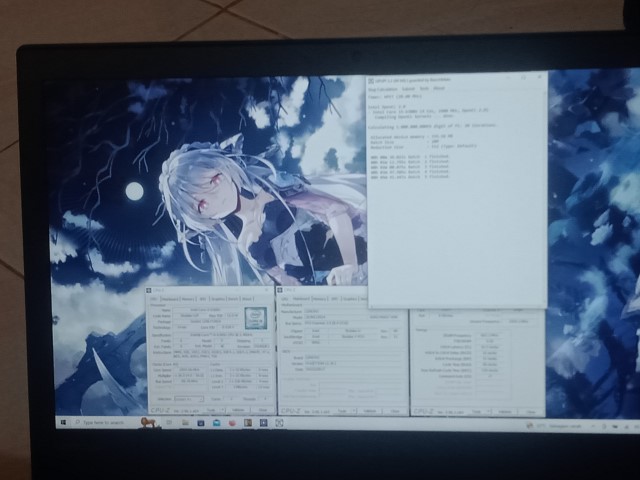

Lenovo ThinkPad T470 Benchmark Result
The benchmark data below reflects the performance of the main components (CPU/SoC and GPU) i5-6300U and HD Graphics 520 (Mobile) used in this device, based on test results using various benchmark applications.
This tool has been tested through 53 benchmark submissions: 36 for processors and 17 for graphics cards.
| No. | Benchmark | Hardware | Score |
|---|---|---|---|
| 1 | 3DMark - Cloud Gate | Intel HD Graphics 520 (Mobile) | 4589 marks |
| 2 | 3DMark - Cloud Gate (GPU) | Intel HD Graphics 520 (Mobile) | 5626 marks |
| 3 | 3DMark - Fire Strike | Intel HD Graphics 520 (Mobile) | 666 marks |
| 4 | 3DMark - Fire Strike (GPU) | Intel HD Graphics 520 (Mobile) | 708 marks |
| 5 | 3DMark - Fire Strike Extreme | Intel HD Graphics 520 (Mobile) | 314 marks |
| 6 | 3DMark - Fire Strike Ultra | Intel HD Graphics 520 (Mobile) | 154 marks |
| 7 | 3DMark - Ice Storm | Intel HD Graphics 520 (Mobile) | 36177 marks |
| 8 | 3DMark - Ice Storm Extreme | Intel HD Graphics 520 (Mobile) | 27733 marks |
| 9 | 3DMark - Ice Storm Unlimited | Intel HD Graphics 520 (Mobile) | 52089 marks |
| 10 | 3DMark - Night Raid | Intel HD Graphics 520 (Mobile) | 2761 marks |
| 11 | 3DMark - Sky Diver | Intel HD Graphics 520 (Mobile) | 2877 marks |
| 12 | 3DMark - Time Spy | Intel HD Graphics 520 (Mobile) | 256 marks |
| 13 | 3DMark - Time Spy (GPU) | Intel HD Graphics 520 (Mobile) | 224 marks |
| 14 | 3DMark - Time Spy Extreme | Intel HD Graphics 520 (Mobile) | 117 marks |
| 15 | 3DMark CPU PROFILE 1 THREAD | Intel Core i5 6300U | 466 marks |
| 16 | 3DMark CPU PROFILE MAX | Intel Core i5 6300U | 924 marks |
| 17 | 7-Zip | Intel Core i5 6300U | 10900 MIPS |
| 18 | CPU-Z Benchmark - Multi Thread | Intel Core i5 6300U | 817.6 points |
| 19 | CPU-Z Benchmark - Single Thread | Intel Core i5 6300U | 289.8 points |
| 20 | Cinebench - 2003 | Intel Core i5 6300U | 1601 cb |
| 21 | Cinebench - R11.5 | Intel Core i5 6300U | 2.91 pts |
| 22 | Cinebench - R15 | Intel Core i5 6300U | 262 cb |
| 23 | Cinebench - R20 | Intel Core i5 6300U | 656 pts |
| 24 | Cinebench - R23 Multi Core with BenchMate | Intel Core i5 6300U | 1477 pts |
| 25 | Cinebench - R23 Single Core with BenchMate | Intel Core i5 6300U | 777 pts |
| 26 | GPUPI for CPU - 100M | Intel Core i5 6300U | 1min, 544ms |
| 27 | GPUPI for CPU - 1B | Intel Core i5 6300U | 22min, 28sec, 335ms |
| 28 | GPUPI for CPU v.3.3 - 100M | Intel Core i5 6300U | 1min, 2sec, 869ms |
| 29 | GPUPI for CPU v.3.3 - 1B | Intel Core i5 6300U | 21min, 42sec, 40ms |
| 30 | Geekbench3 - Multi Core | Intel Core i5 6300U | 5290 points |
| 31 | Geekbench3 - Single Core | Intel Core i5 6300U | 2561 points |
| 32 | Geekbench4 - Compute | Intel HD Graphics 520 (Mobile) | 13866 points |
| 33 | Geekbench4 - Multi Core | Intel Core i5 6300U | 6112 points |
| 34 | Geekbench4 - Single Core | Intel Core i5 6300U | 3309 points |
| 35 | Geekbench5 - Compute | Intel HD Graphics 520 (Mobile) | 3437 points |
| 36 | Geekbench5 - Multi Core | Intel Core i5 6300U | 1397 points |
| 37 | Geekbench5 - Single Core | Intel Core i5 6300U | 711 points |
| 38 | Geekbench6 - Compute | Intel HD Graphics 520 (Mobile) | 2845 points |
| 39 | Geekbench6 - Multi Core | Intel Core i5 6300U | 1593 points |
| 40 | Geekbench6 - Single Core | Intel Core i5 6300U | 911 points |
| 41 | HWBOT x265 - 1080P | Intel Core i5 6300U | 9.555 FPS |
| 42 | HWBOT x265 - 4K | Intel Core i5 6300U | 2.148 FPS |
| 43 | PCMark 7 | Intel Core i5 6300U | 5020 marks |
| 44 | PCMark10 | Intel Core i5 6300U | 2677 marks |
| 45 | PiFast | Intel Core i5 6300U | 23sec, 10ms |
| 46 | SuperPi - 1M | Intel Core i5 6300U | 12sec, 607ms |
| 47 | SuperPi - 32M | Intel Core i5 6300U | 10min, 50sec, 377ms |
| 48 | WinRAR - Multi Thread | Intel Core i5 6300U | 3001 KB/s |
| 49 | WinRAR - Single Thread | Intel Core i5 6300U | 1075 KB/s |
| 50 | wPrime - 1024M | Intel Core i5 6300U | 8min, 37sec, 272ms |
| 51 | wPrime - 32M | Intel Core i5 6300U | 15sec, 976ms |
| 52 | y-cruncher - Pi-1b | Intel Core i5 6300U | 5min, 20sec, 566ms |
| 53 | y-cruncher - Pi-25m | Intel Core i5 6300U | 3sec, 825ms |
