Comparing: DDR4 SODIMM 3200MHz [Disk] vs HGST HTS545050A7E680

Specification Comparison Table

This specification comparison presents technical details of several devices or components to help you understand the key differences between each option. Use this table as a reference to determine which device best suits your needs.

Submission Comparison Table

This submission comparison table displays the number and details of benchmark data submissions from various devices or components. This information helps you understand the performance based on the benchmarks that have been tested, as well as providing an overview of the consistency and popularity of the available benchmark results.

Submission Comparison Chart

This chart visualizes the benchmark scores comparison between two hardware devices based on submitted data.

Media Gallery

A collection of photos of tested hardware. These images can help you identify the physical form, model, and variant of the hardware in question. These photos are from our own documentation, and if they are not available we may not be able to document them.

About Hardware DDR4 SODIMM 3200MHz [Disk]

DDR4 SODIMM 3200MHz is a high-speed RAM module designed for use in modern laptops with a small form factor (SO-DIMM). With an effective frequency of up to 3200MHz, this module delivers higher bandwidth and better power efficiency compared to previous generations, such as DDR3. These DDR4 modules are perfect for heavy multitasking, large application processing, and light gaming on portable devices.

In this test, the 3200MHz DDR4 SODIMM module was configured as a RAMDisk, which is a super-fast storage system that utilizes part of the RAM capacity to serve as an ultra-high-speed virtual drive. Using a RAMDisk allows for much faster file access than an SSD, making it an ideal solution for data caching, temporary file processing or extreme I/O testing. Despite its temporary nature (data is lost when the computer is shut down or restarted), its performance advantage is felt in certain scenarios such as fast rendering, program compilation, or storage benchmarks.

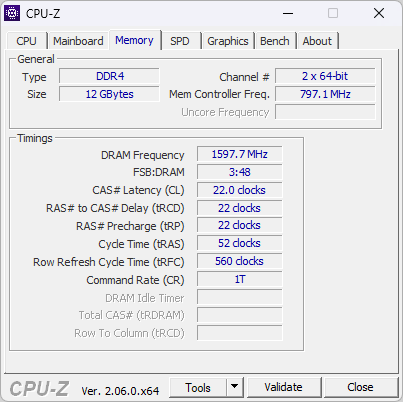

The test was conducted on a Lenovo IdeaPad Slim 3i 14ITL6 laptop with an Intel Core i5-1135G7 processor, 12GB DDR4 3200MHz RAM in a dual channel configuration (8GB V-GeN + 4GB onboard Micron), and Windows 11 22H2 operating system. The 2GB RAMDisk was created using SoftPerfect RAMDisk and ImDisk Virtual Disk applications, two popular software for managing RAM-based virtual storage.

The benchmark results showed very impressive performance: CrystalDiskMark recorded read speeds of 7844.91 MB/s and write speeds of 12726.74 MB/s, while in ATTO Disk Benchmark (64MB block size), read speeds reached 5740.00 MB/s and write speeds of 6020.00 MB/s. These results prove that using RAMDisk with 3200MHz DDR4 is one of the most effective ways to deliver ultra-fast storage performance in laptop systems, exceeding the speed of even NVMe SSDs in certain scenarios. With ultra-low latency and high bandwidth, 3200MHz DDR4 SODIMM-based RAMDisks are an attractive solution for users who require extreme performance for specific tasks.

Device test (testbed):

Device: Lenovo IdeaPad Slim 3i 14ITL6
CPU: i5 1135G7
RAM: 12GB DDR4 3200MHz Dual Channel (8+4)
OS: Windows 11 22H2

Friday, 06 August 2021 04:34:19 | Update: 2 weeks ago

About Hardware HGST HTS545050A7E680

The HGST HTS545050A7E680 is a 500GB hard disk drive (HDD) designed for storage needs in laptops, external enclosures, and other mobile devices. With a 2.5-inch form factor, 5400 RPM rotation speed, and 3.0Gbps SATA II interface, this HDD offers an ideal blend of capacity, power efficiency, and stable and quiet performance for everyday computing needs.

Based on the Travelstar Z5K500 family, this HDD uses 1 platter and 2 heads, which structurally supports reasonably efficient performance without generating excess heat or noise. The 8MB buffer cache provides a speed boost in short data processing, which is especially useful for light activities such as opening document files, playing videos, and storing business application data.

In tests using a USB 3.0 HDD enclosure connected to a Lenovo IdeaPad Slim 3i 14ITL6 laptop (with Intel Core i5-1135G7 processor and 12GB DDR4 dual-channel RAM), the drive recorded CrystalDiskMark scores of 108.05 MB/s read and 104.88 MB/s write speeds. Meanwhile, the ATTO Disk Benchmark (64M) test showed read performance of 102.40 MB/s and write performance of 101.45 MB/s - relatively good results for a 5400 RPM HDD in an external configuration.

While not an SSD, the HGST HTS545050A7E680 still offers high reliability and low power consumption, making it a suitable solution for users who need additional storage or an affordable replacement for an internal HDD while still prioritizing long-term stability. In addition, HGST's shock resistance feature provides extra protection against minor physical impacts that often occur on mobile devices.

Overall, the HGST HTS545050A7E680 is a great choice for laptop users, light content creators or business users who require medium capacity, low power consumption and reliable performance in a portable or internal drive.

Device test (testbed):

Device: Lenovo IdeaPad Slim 3i 14ITL6 (using HDD Enclosure USB 3.0)
CPU: i5 1135G7
USB: USB 3.1 Gen 1
RAM: 12GB DDR4 3200MHz Dual Channel (8+4)
OS: Windows 11 22H2

Saturday, 04 November 2023 13:01:20 | Update: 2 weeks ago
